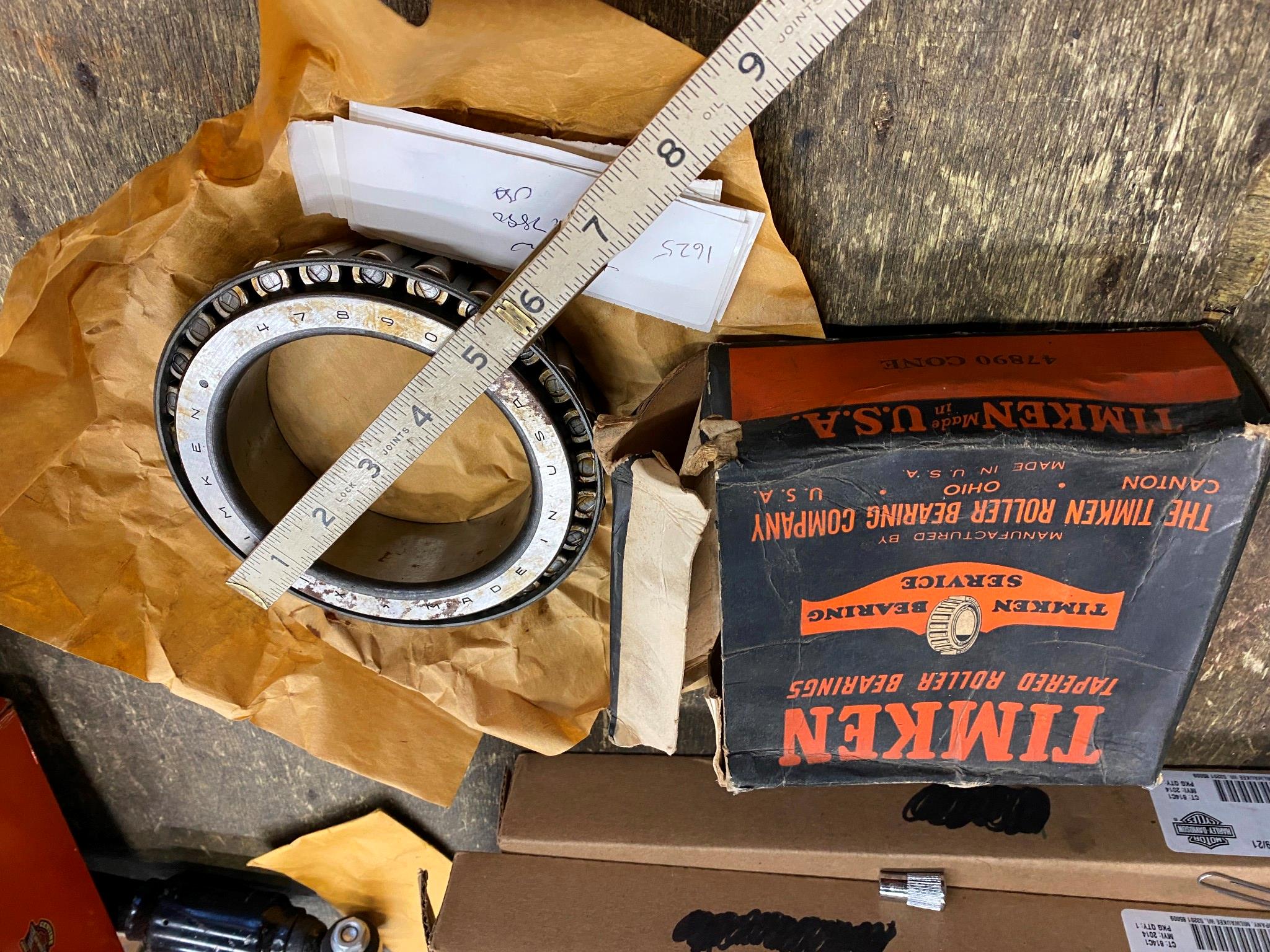

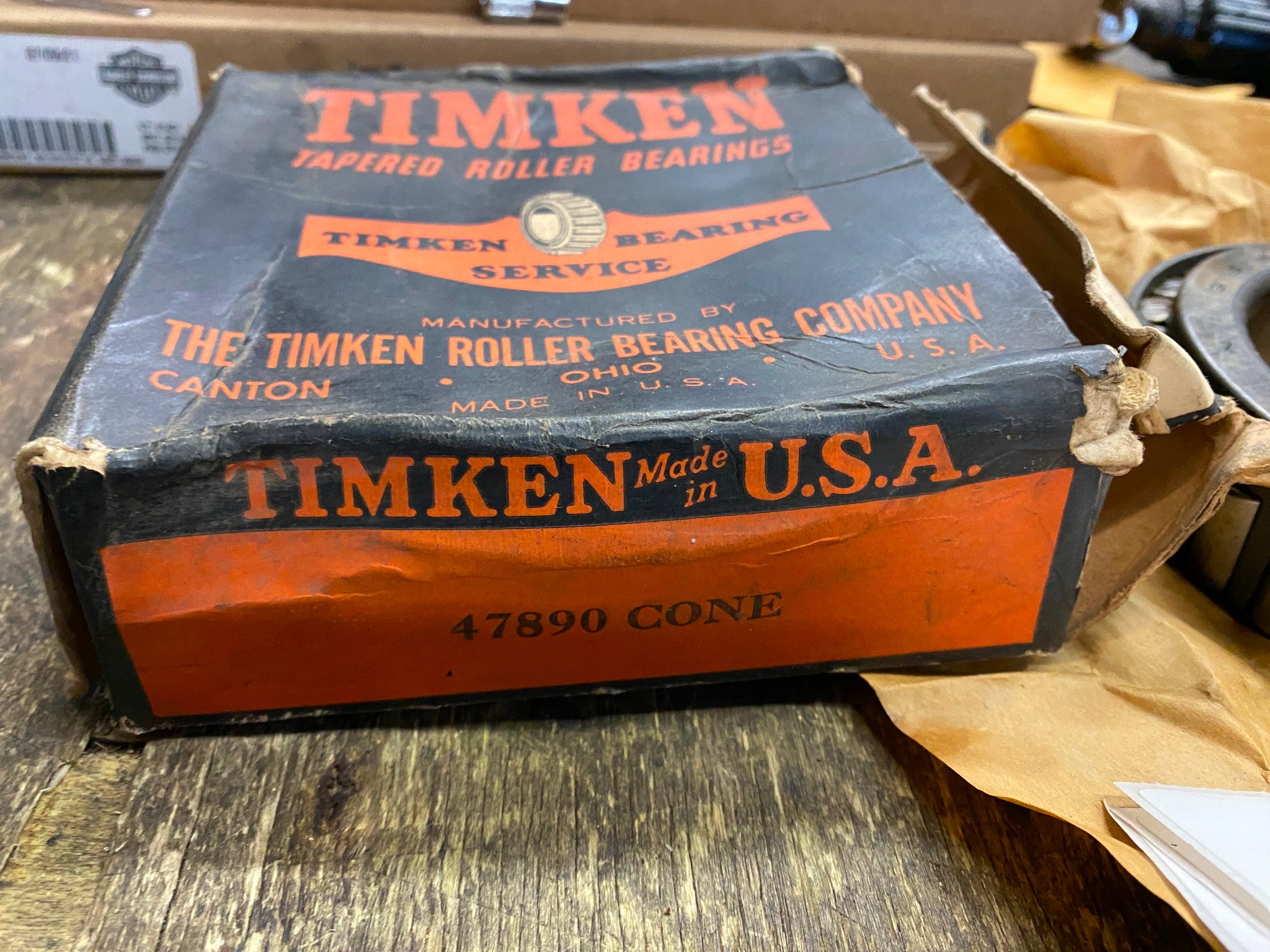

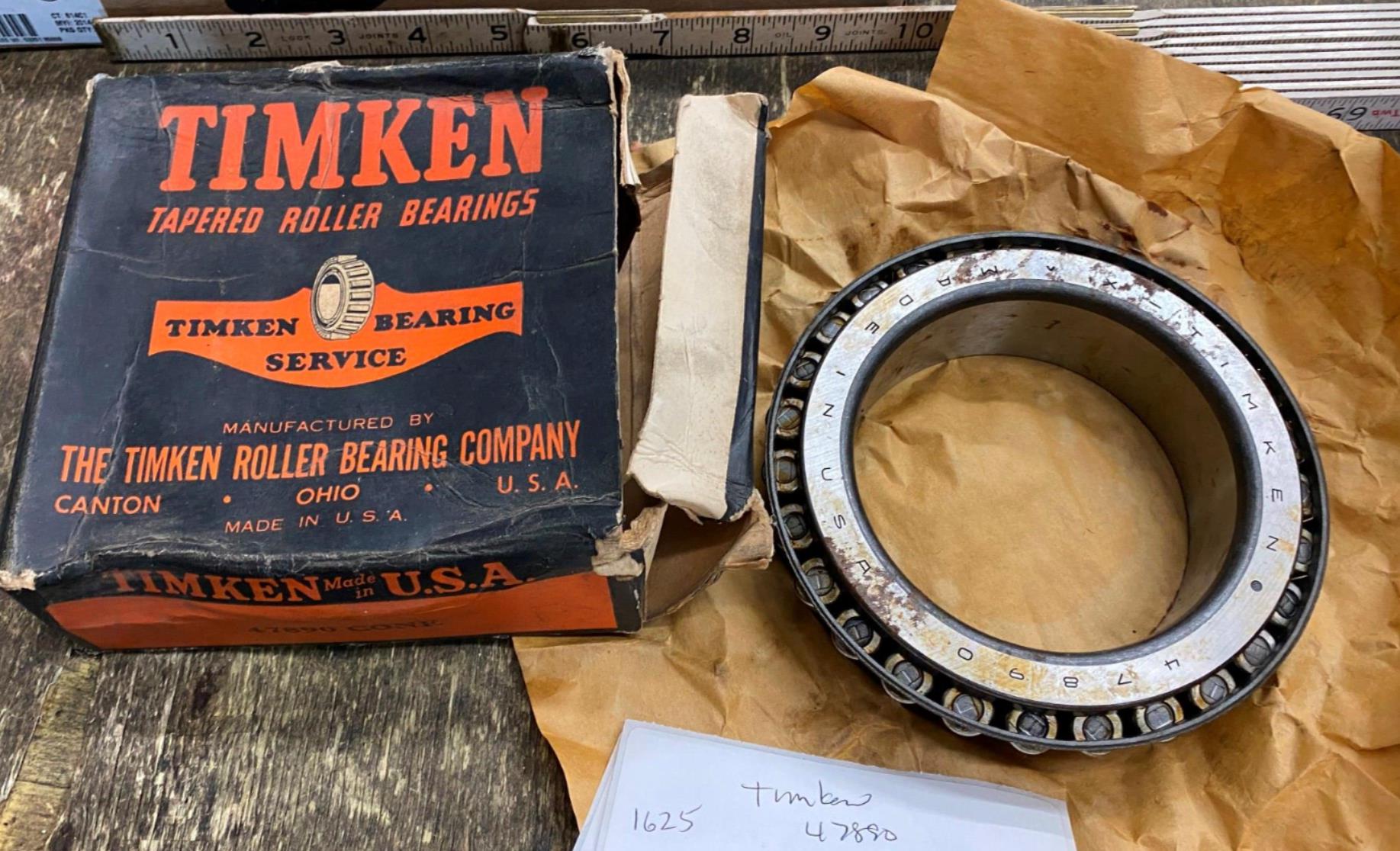

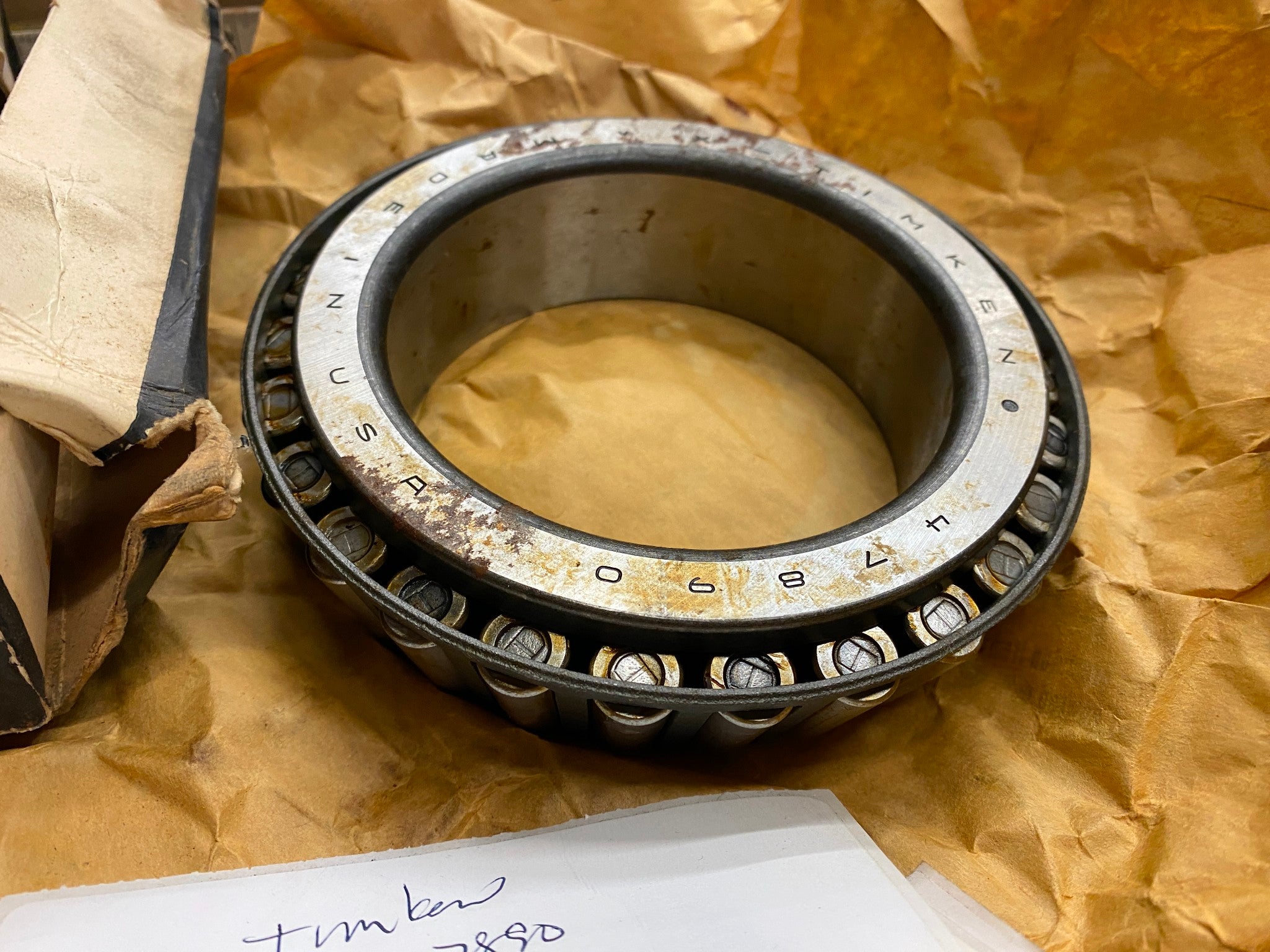

Name: Customer endorsements Vtg USA Timken Tapered Roller Bearing Cone -
SKU: KU497872
Price: 79.95 USD
Availability: InStock

Sale!

Today's special offer

$39.00

Only 7 left in stock

49 people are viewing this right now

Get it between Nov 6 - Nov 8

SKU: KU497872 Category: my store

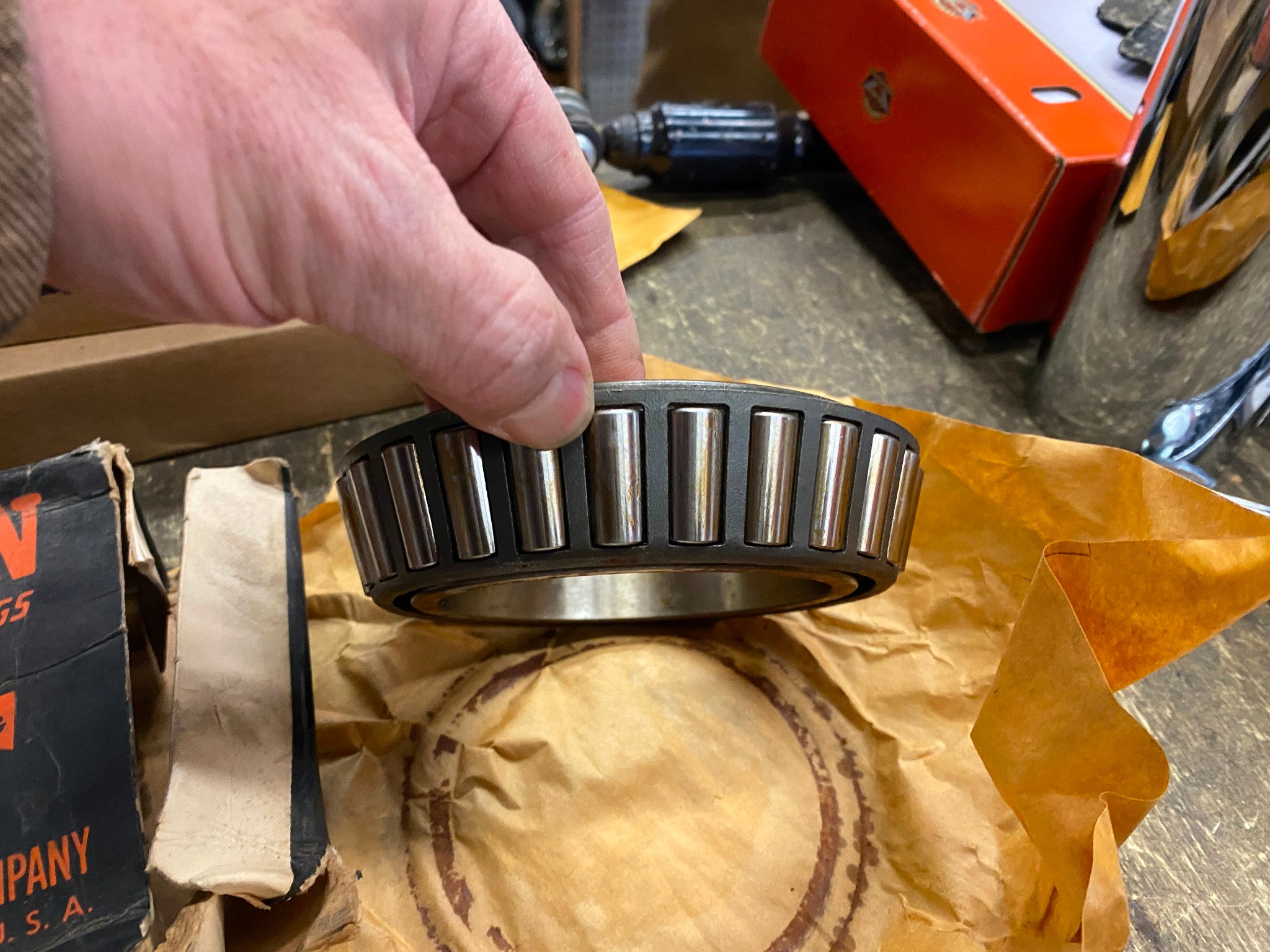

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

Series	47800

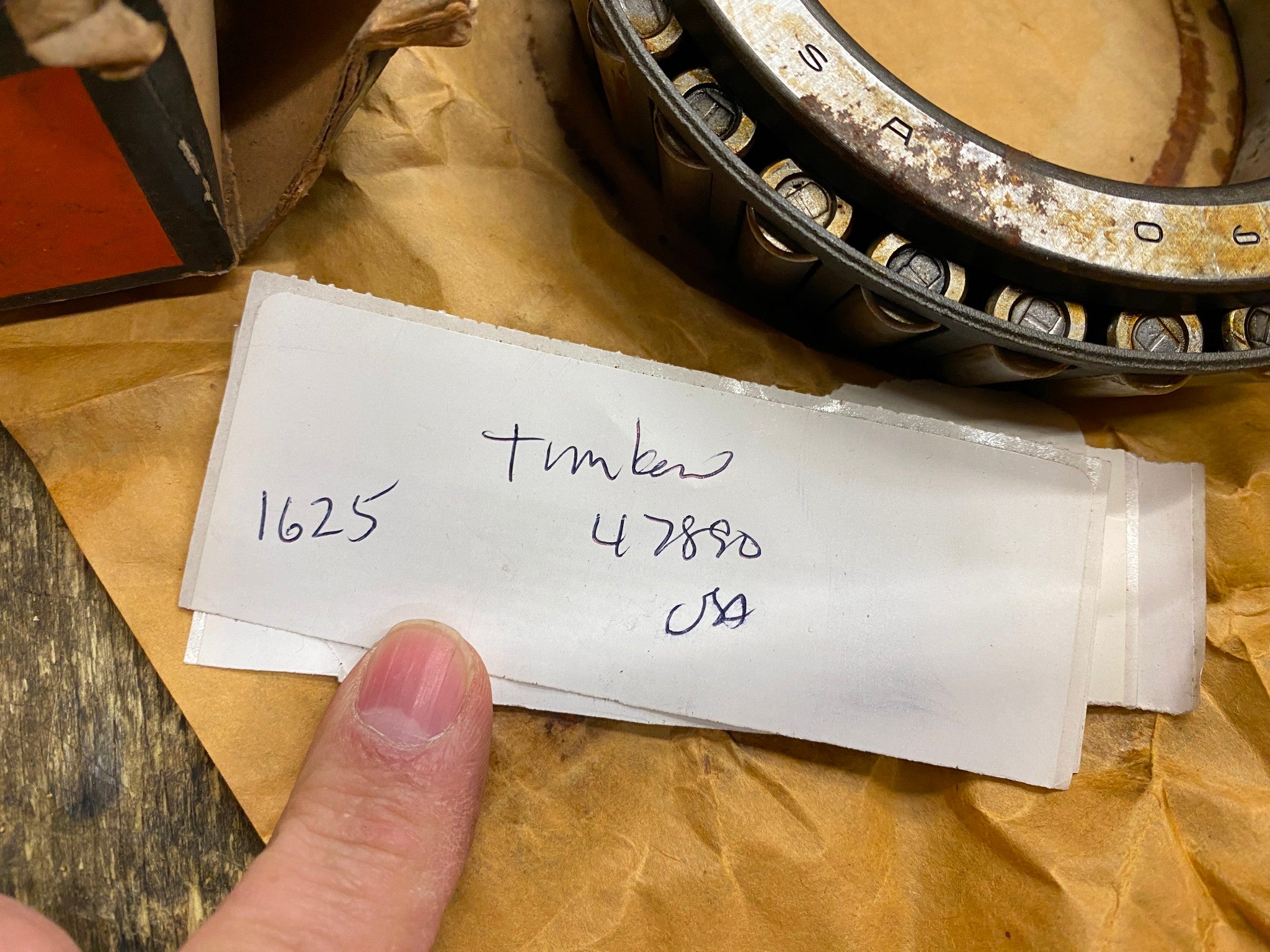

Cone Part Number	47890
Design Units	Imperial
Cage Type	Stamped Steel
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)¹	77100 lbf343000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)²	20000 lbf88900 N

d - Cone Bore	3.6250 in92.075 mm
B - Cone Width	1.375 in34.925 mm

R - Cone Backface "To Clear" Radius³	0.14 in3.600 mm
da - Cone Frontface Backing Diameter	4.06 in103 mm
db - Cone Backface Backing Diameter	4.29 in109 mm
Ab - Cage-Cone Frontface Clearance	0.03 in0.8 mm
Aa - Cage-Cone Backface Clearance	0.09 in2.3 mm
a - Effective Center Location⁴	-0.04 in-1 mm

C90 - Dynamic Radial Rating (90 million revolutions)⁵	11500 lbf51100 N
C1 - Dynamic Radial Rating (1 million revolutions)⁶	44300 lbf197000 N
C0 - Static Radial Rating	69000 lbf307000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁷	8810 lbf39200 N

K - Factor⁸	1.3
G1 - Heat Generation Factor (Roller-Raceway)	153
G2 - Heat Generation Factor (Rib-Roller End)	38.1
Cg - Geometry Factor⁹	0.143

¹ Based on 1 x 10⁶ revolutions L₁₀ life, for the ISO life calculation method.
² Based on 90 x 10⁶ revolutions L₁₀ life, for The Timken Company life calculation method. C₉₀ and C_a90 are radial and thrust values for a single-row, C₉₀₍₂₎ is the two-row radial value.
³ These maximum fillet radii will be cleared by the bearing corners.
⁴ Negative value indicates effective center inside cone backface.
⁵ Based on 90 x 10⁶ revolutions L₁₀ life, for The Timken Company life calculation method. C₉₀ and C_a90 are radial and thrust values.
⁶ Based on 1 x 10⁶ revolutions L₁₀ life, for the ISO life calculation method.
⁷ Based on 90 x 10⁶ revolutions L₁₀ life, for The Timken Company life calculation method. C₉₀ and C_a90 are radial and thrust values for a single-row, C₉₀₍₂₎ is the two-row radial value.
⁸ These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
⁹ Geometry constant for Lubrication Life Adjustment Factor a3l.

more than welcome to pick up at shop in butler pa & save shipping.
