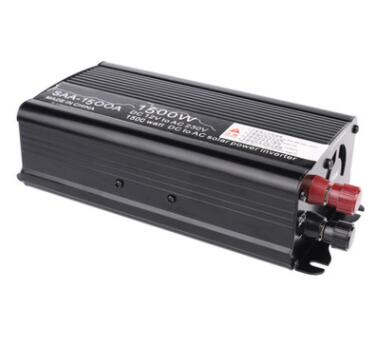

Multi-purpose Model: 1000W - SAA300W-3000W car inverter 12V-220V home car inverter

1. Description:
Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.
This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.


2. Features and Application:
• Modified sine wave output
• High efficiency and portable
• Intelligent switch with digital display to show the input voltage and loading
• Intelligent to control the fan
• Advanced microprocessor design
• With under voltage/over voltage/over load/short circuit/overheat protection function


3.Parameters:

1

MAX power

300W

2

rated voltage

12.8V-13.2V

3

work voltage

11V-15V

4

No-load current
with the rated voltage

<0.3A

5

USB output current

500MA Max

6

No-load output voltage
(with the rated voltage )

220V-240V

7

output voltage(12V-14V) with regulating load(10W-500W)

210V-240V

8

Fan

start work when loading
